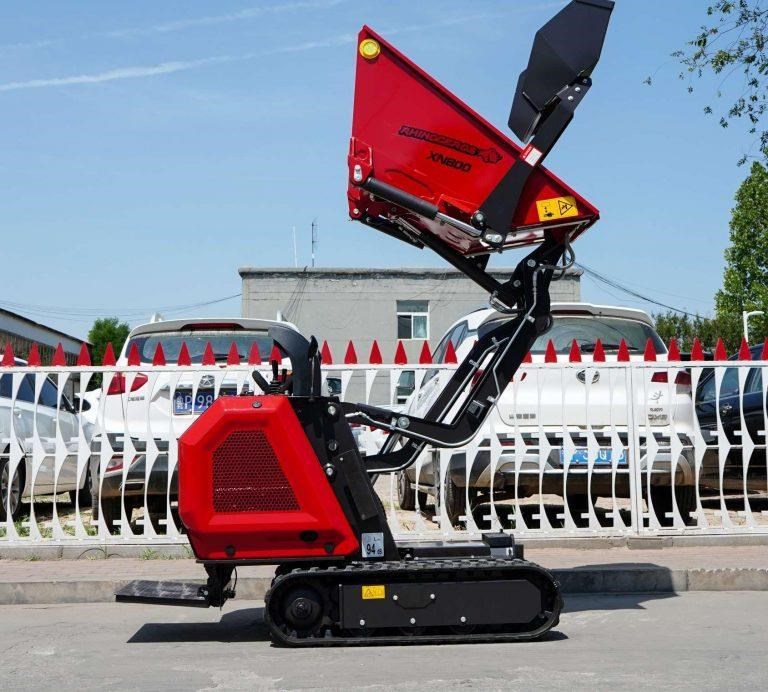

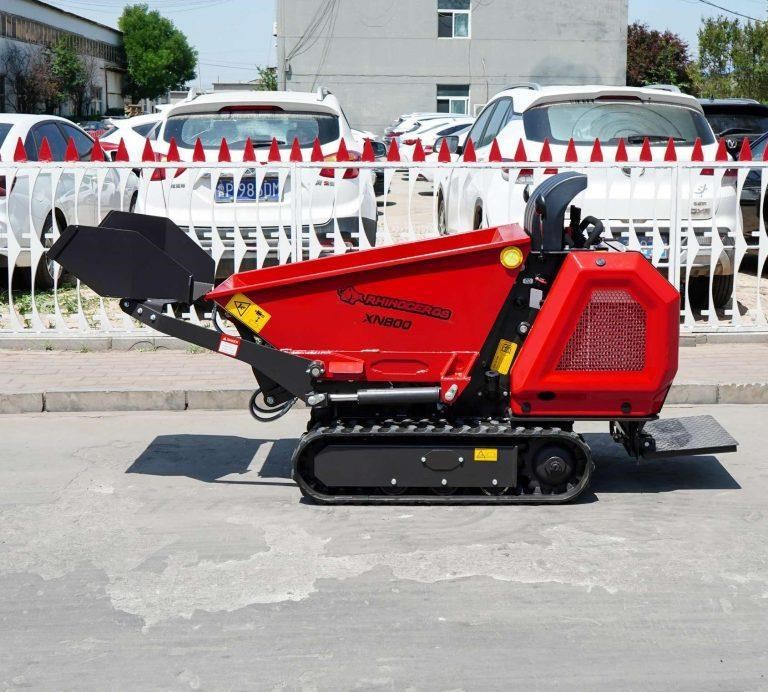

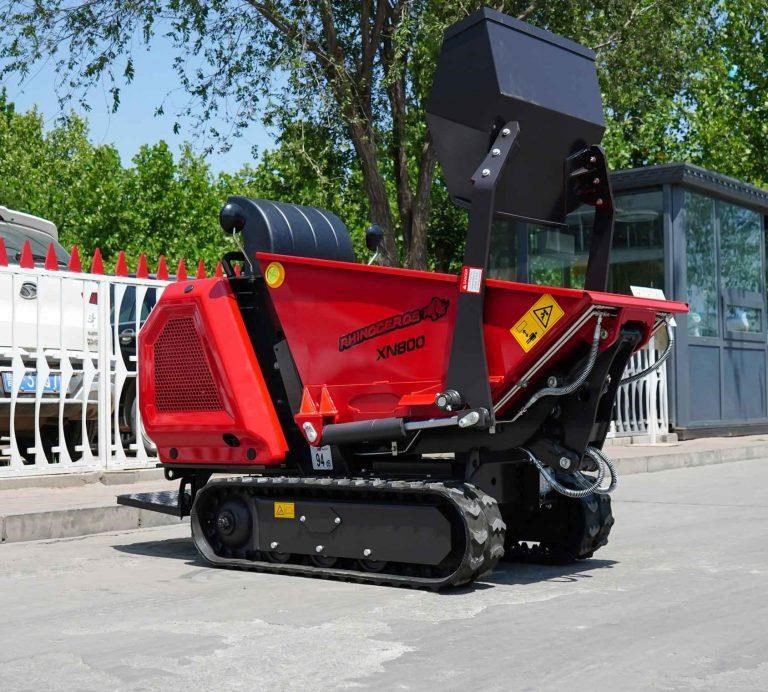

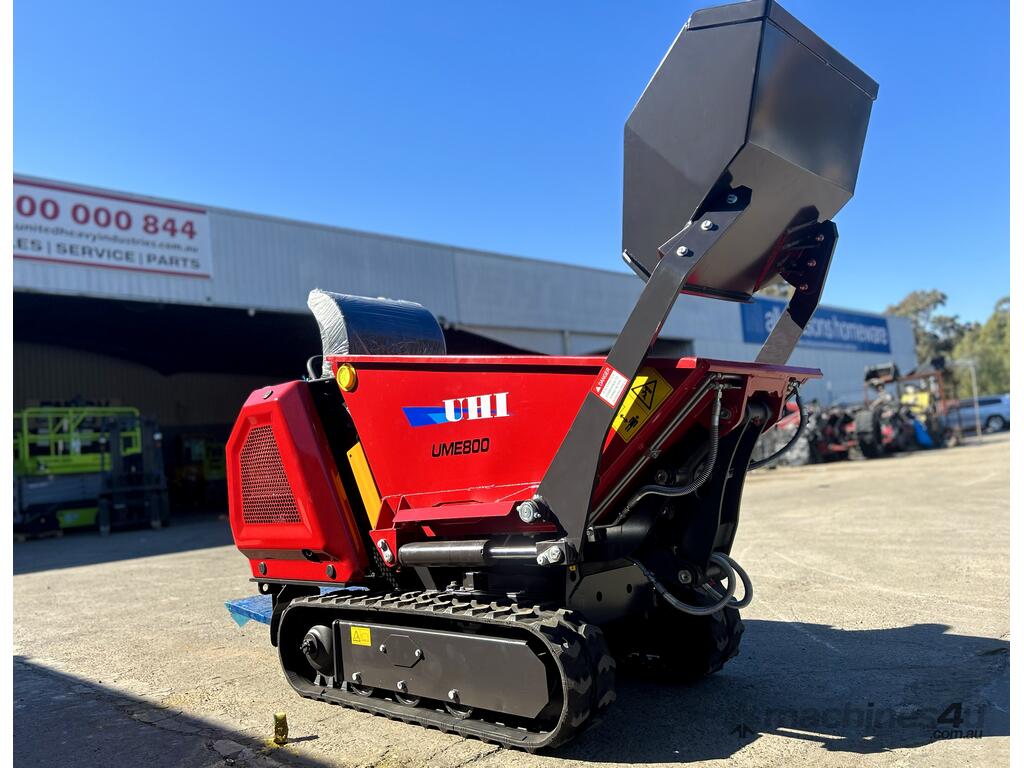

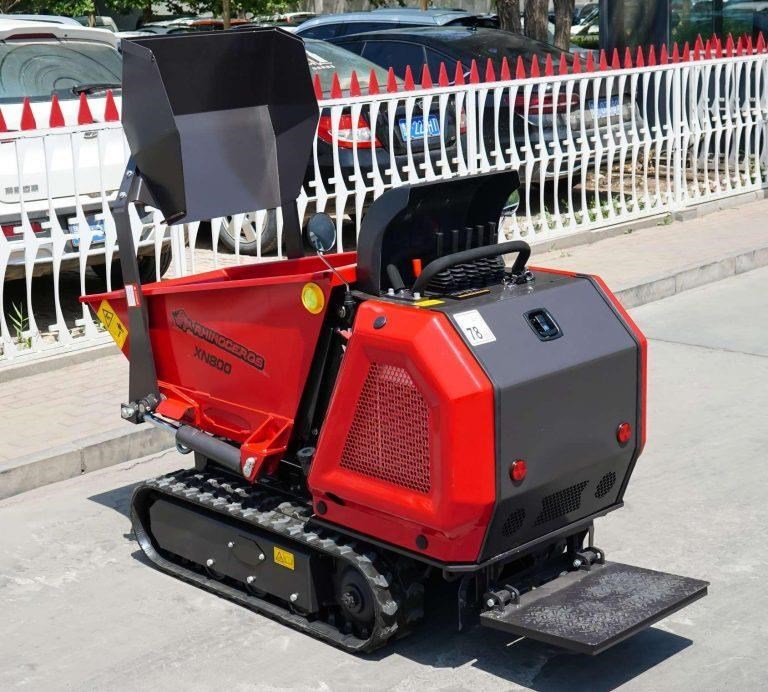

NEW UHI UME800 SELF LOADING DUMPER, 800KG CAPACITY,
SPCIFICAION
Operating weight: 920kg
Capacity of loading: 800kg
Bucket capacity: 0.26cbm
Working type: Self loading and unloading

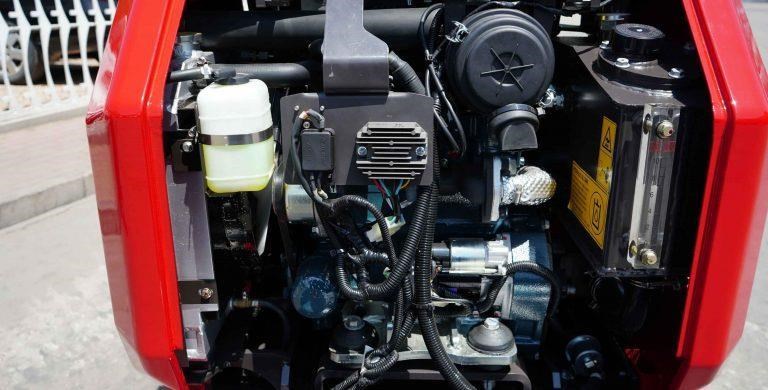

Engine: Kubota D722
Displacement: 0.719L
Rated power/Rev: 10.2Kw/2500rpm
Max. torque: 42.9N.m/2000rpm
Max. speed: 4km/h
Min. speed: 2km/h
Max. grade ability: 30%
Track ground pressure: 26.13KPa
Track material: Rubber
Track tightening type: Screw adjustment
Hydraulic pump type: Gear duplex pump
Hydraulic system pressure: 16MPa
Flow rate: 30L/min
Hydraulic oil tank: 14L
Fuel tank: 16L
MAIN DIMENSION
Track width: 914mm
Track length: 1230mm
Length: 1795mm
Track height: 320mm
Height of tip front end from ground: 810mm
Height from self loading bucket to ground: 1690mm
Platform off ground: 355mm

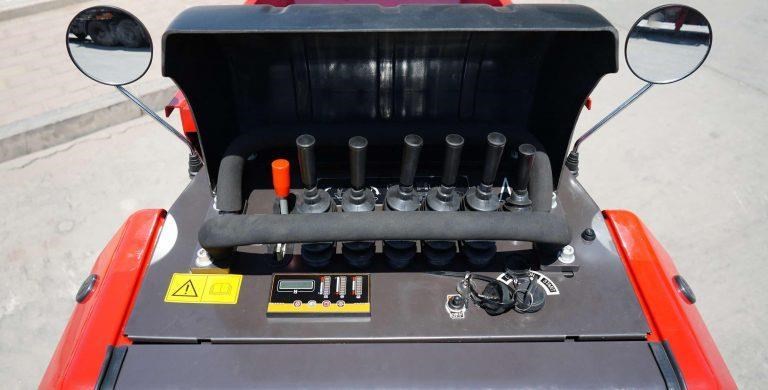

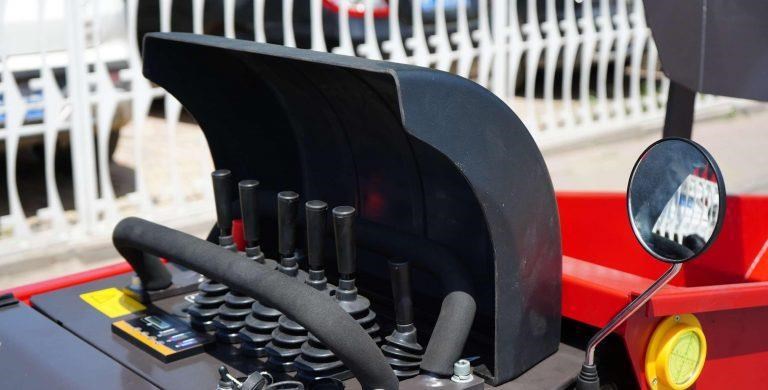

Control console height above ground: 1005mm
Height of tip back from ground: 1060mm
Width: 820mm
Track width: 180mm
Tipping bucket width: 620mm
Maximum dumping Height: 1700mm
Maximum unloading tipper height: 2980mm
